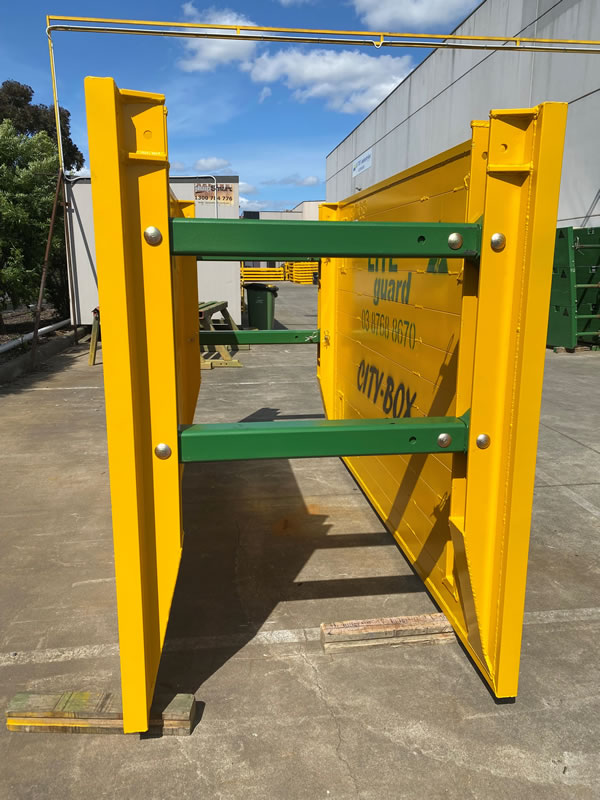

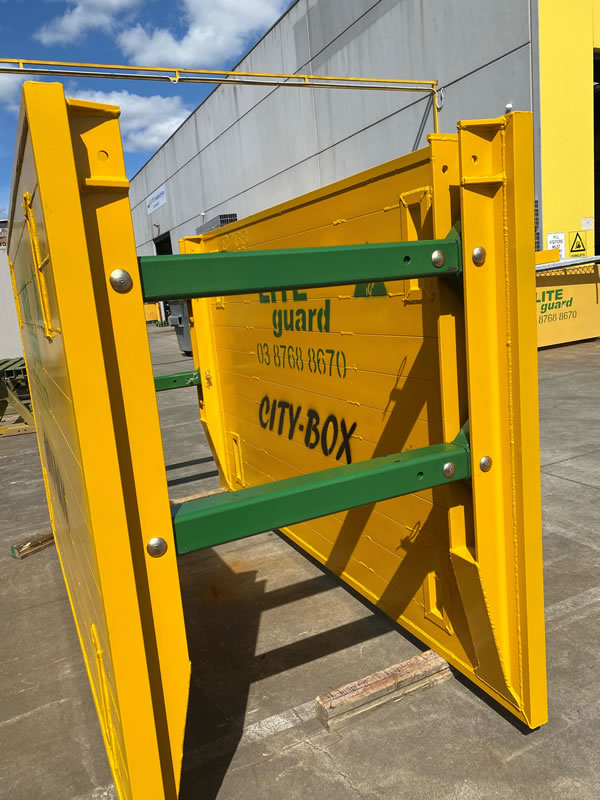

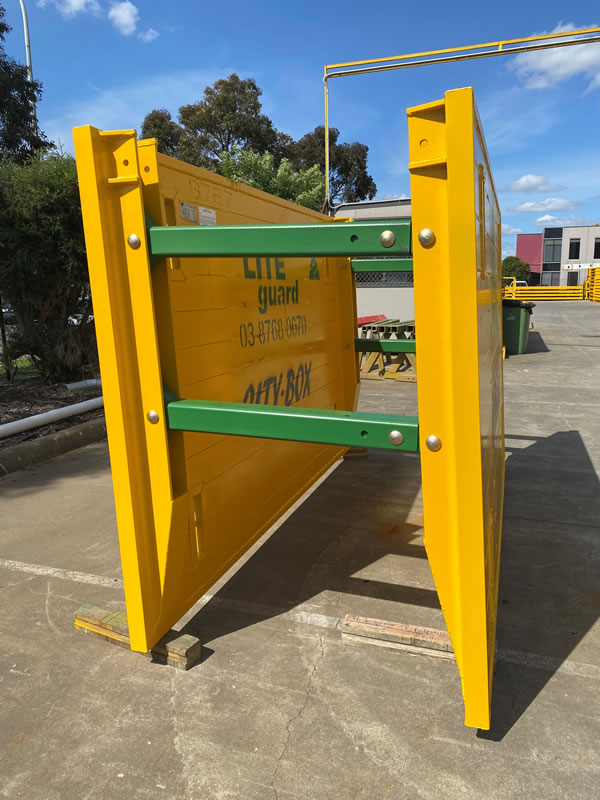

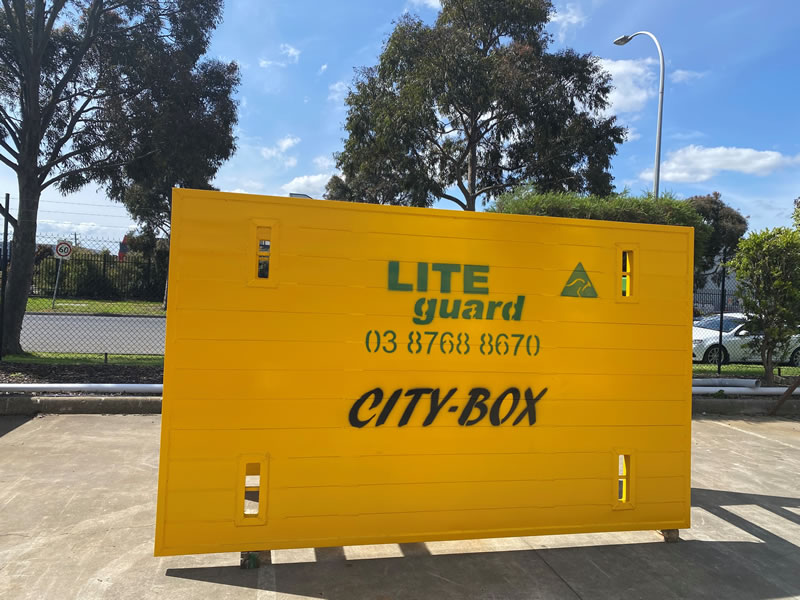

The EAW City Box is a compact trench shield designed for excavators in the 3.5 tonne and upwards range, which typically have a lifting capacity of around 500kg. It gives contractors using this size of excavator a full-strength trench shield.
It is ideal for confined areas such as city sites and back yards where space for machines is limited.
Our City Boxes are also available and manufactured under licence in the UK. If you’re in the UK and need a trench shield for confined spaces check out the details on our City Boxes.
Main Features
Suit smaller excavators
Can be inverted for stacking
Option of fixed or telescoping spreader bars / struts
| Panel Sizes | Weights | kPa Rating |
|---|---|---|
| 3000mm x 1800mm x 56mm | 170kg | 32kPa |
| 2400mm x 2400mm x 56mm | 240kg | 45kPa |
Fixed Spreader Bars / Struts
Range from 600mm to 4000mm
Telescoping Spreader Bars / Struts
Various sizes available on request.
| Panel Type | Panel Length mm | Panel Height mm | Safe Working Load (kPa) | Panel Thickness mm | Under Strut Clearance | Internal Clearance Strut to Strut mm | Unit weight Incl. 1000mm Struts |
|---|---|---|---|---|---|---|---|
| Lower | 3000 | 1800 | 32 | 56 | 800 | 2700 | 462kgs |
| Lower | 2400 | 2400 | 45 | 56 | 1100 | 2100 | 593kgs |
EAW City Boxes meet Australian standards
AS 4744.1:2025
