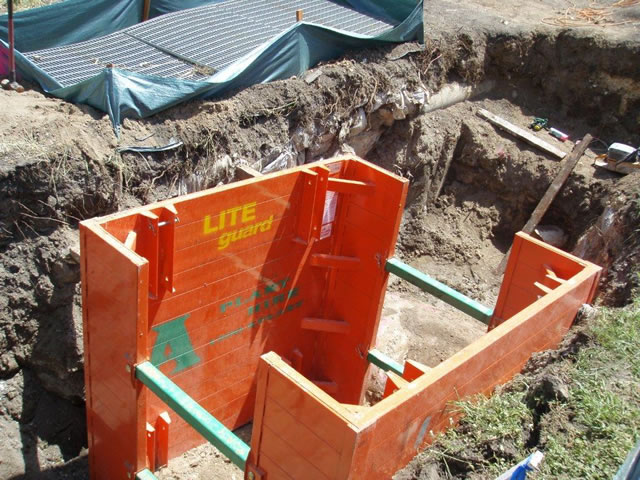

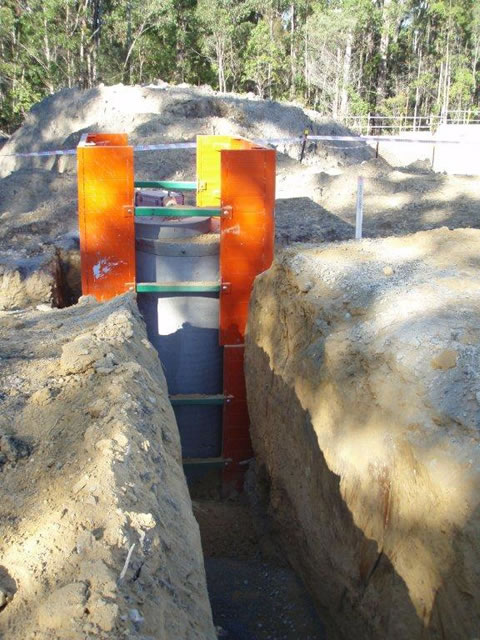

EAW Trench Shield Manhole Boxes are aluminium trench shields designed for use with manholes, pits and pump stations. The lighter 2 metre box is suitable for a 3 tonne excavator, while the larger boxes need an excavator with a lifting capacity of 6 tonne and upwards.
The EAW Trench Shield Manhole Box is also available and manufactured under licence in the UK. If you're in the UK and after a lightweight trench shoring solution for working with manholes, pits and pump stations check out our Manhole Boxes.
Main Features

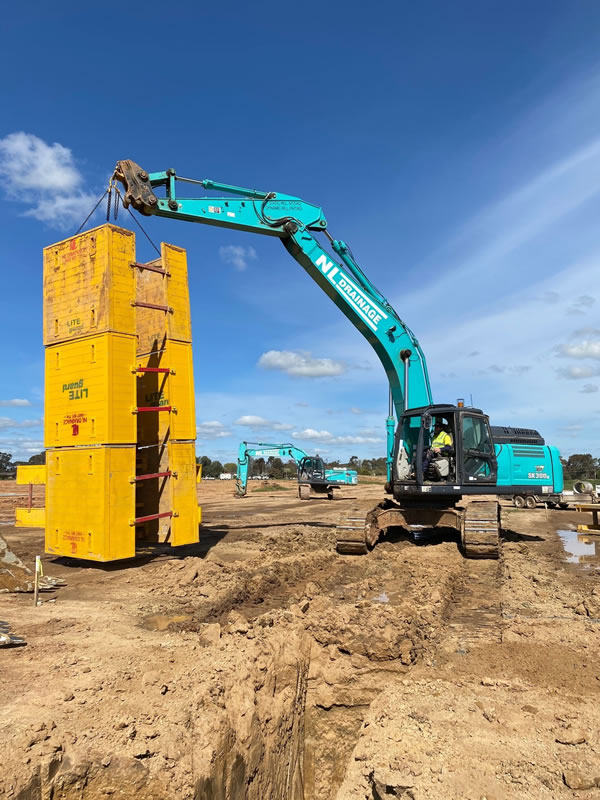

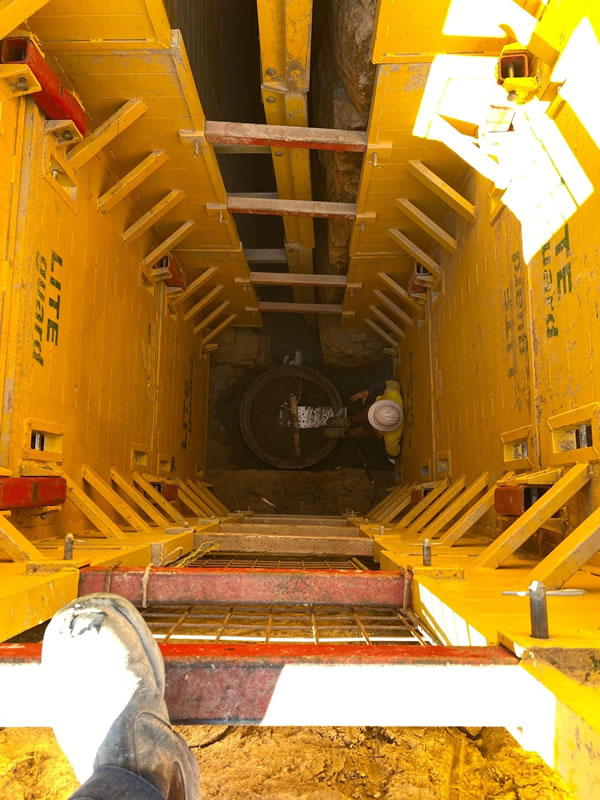

Can be stacked
Legs available with these units
Telescoping spreader bar option
| Panel Sizes | Weights | kPa Rating |
|---|---|---|
| 2000mm x 2000mm x 56mm* | 170kg | 30kPa |
| 2400mm x 2400mm x 90mm* | 450kg | 90kPa |
| 3000mm x 2400mm x 90mm* | 530kg | 60kPa |
Fixed Spreader Bars / Struts
1200mm standard (75mm x 75mm x 6mm SHS) for 56mm* Wall thickness
1000mm to 4000mm (100mm x 100mm x 9mm Steel SHS) for 90mm* Wall thickness
Telescoping Spreader Bars / Struts
Various sizes available on request
| Panel Type | Panel Length mm | Panel Height mm | Safe Working Load (kPa) | Panel Thickness mm | Under Strut Clearance | Internal Clearance Strut to Strut mm | Unit weight Incl. 1000mm Struts |
|---|---|---|---|---|---|---|---|
| Unit | 2000 | 2000 | 30 | 56 | 560 | 1800 | 400kgs |
| Unit | 2400 | 2400 | 90 | 90 | 1150 | 2200 | 1000kgs |
| Unit | 3000 | 2400 | 60 | 90 | 1150 | 2800 | 1183kgs |
EAW Trench Shield Manhole Boxes meet Australian standards
AS 4744.1:2025
