LITE Guard's Super Trench Shields are aluminium trench shields suitable for smaller sub division works.
They are ideal trench shields for contractors using back hoes and smaller excavators from 5.0 tonne to 12 tonne. All models are available with a full range of spreader bars up to 5000mm wide. Developed for use with mini-excavators.
Double skin. Great contractors shield, good for all pipe laying and excavation work. Light weight, great working loads.

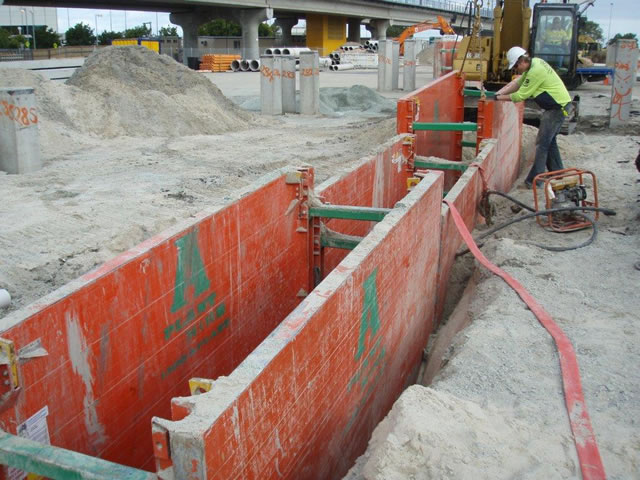

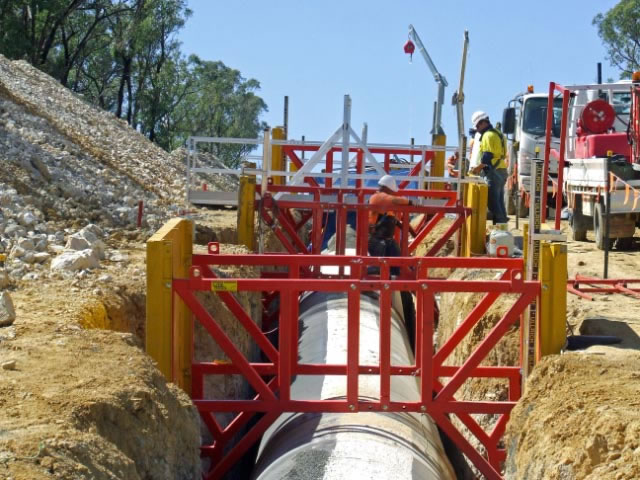

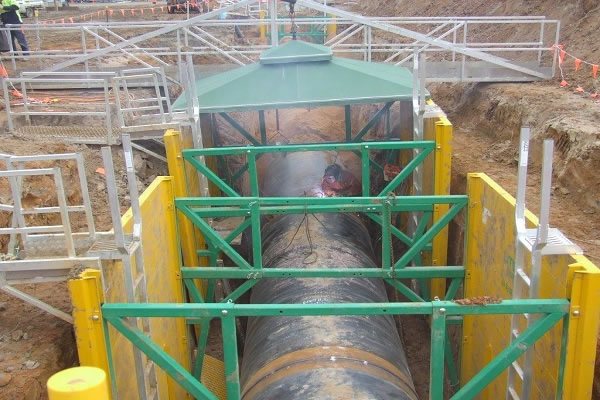

High clear rise bars are used to increase under strut clearance for large pipes and culverts.
Main Features
Double skin
Light weight
High clearance rise bars on request
Option of fixed or telescoping spreader bars (telescoping on request)
| Panel Sizes | Weights | kPa Rating |
|---|---|---|
| 3100mm x 1950mm x 90mm | 260kg | 60kPa |
| 3600mm x 2400mm x 90mm | 403kg | 43kPa |
| 4000mm x 2400mm x 90mm | 450kg | 35kPa |

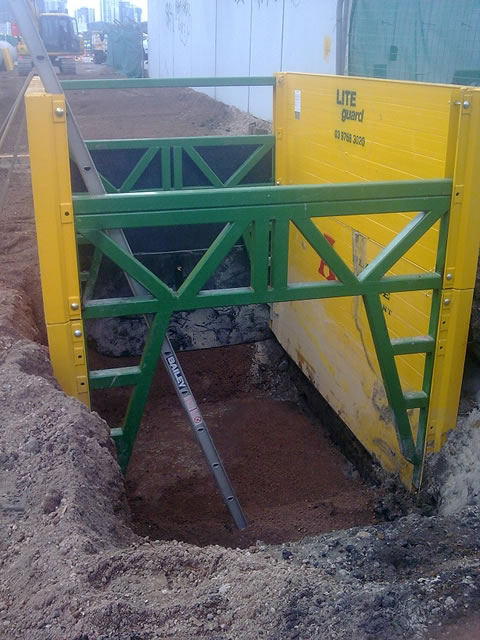

High Clear Rise Bar
1950mm under strut height (Standard)
Fixed Struts
1000mm to 4000mm (Internal)
Fixed Spreader Bars / Struts
100 x 100 x 9 Steel – 600mm to 3000mm
150 x 100 x 9 Steel – 3500 x 5000mm
| Panel Type | Panel Length mm | Panel Height mm | Safe Working Load (kPa) | Panel Thickness mm | Under Strut Clearance | Internal Clearance Strut to Strut mm | Unit weight Incl. 1000mm Struts |
|---|---|---|---|---|---|---|---|
| Lower | 3100 | 1950 | 60 | 90 | 950 | 2800 | 737kgs |
| Upper | 3100 | 1950 | 60 | 90 | 550 | 2800 | 780kgs |
| Lower | 3600 | 2400 | 43 | 90 | 1350 | 3300 | 978kgs |
| Upper | 3600 | 1950 | 43 | 90 | 550 | 3300 | 870kgs |
| Lower | 4000 | 2400 | 35 | 90 | 1350 | 3700 | 1086kgs |
LITE guard Super Trench Shields Meet Global Standards
AS/NZ 4744.1 - 2000, BS EN 13331.1 & 2 - 2002 (British & European Standard), OSHA Sub Part P
