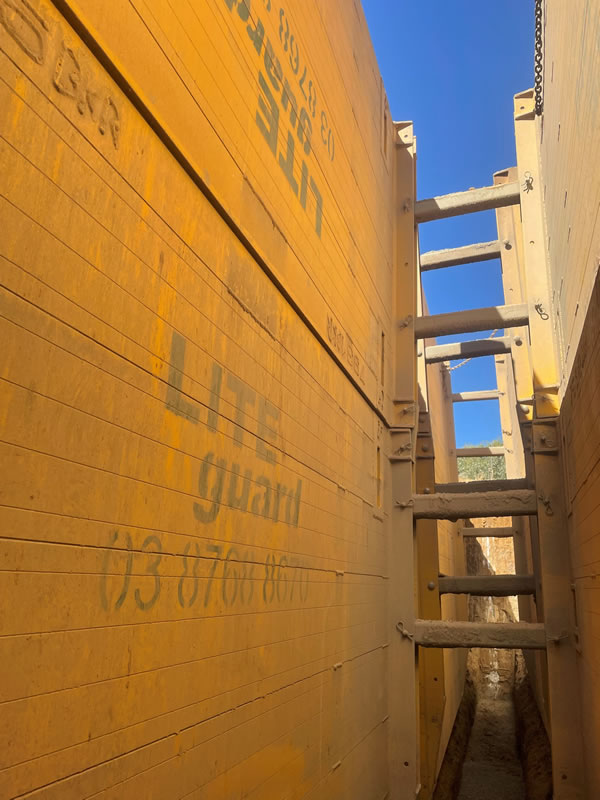

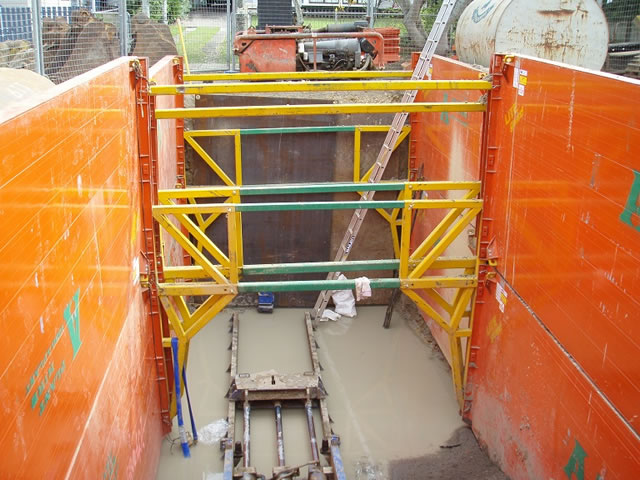

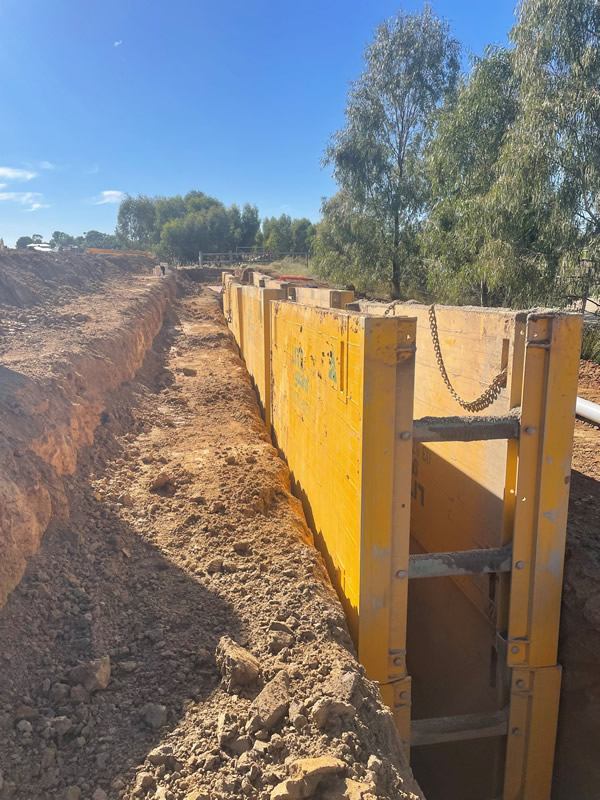

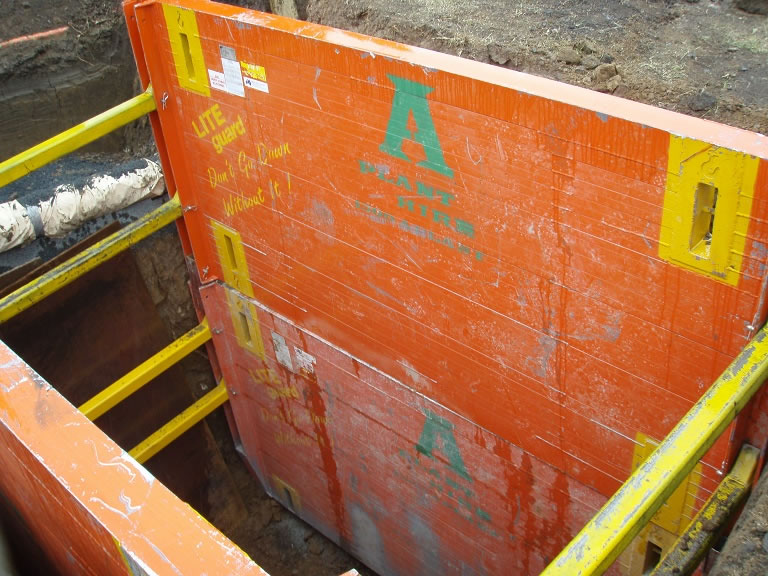

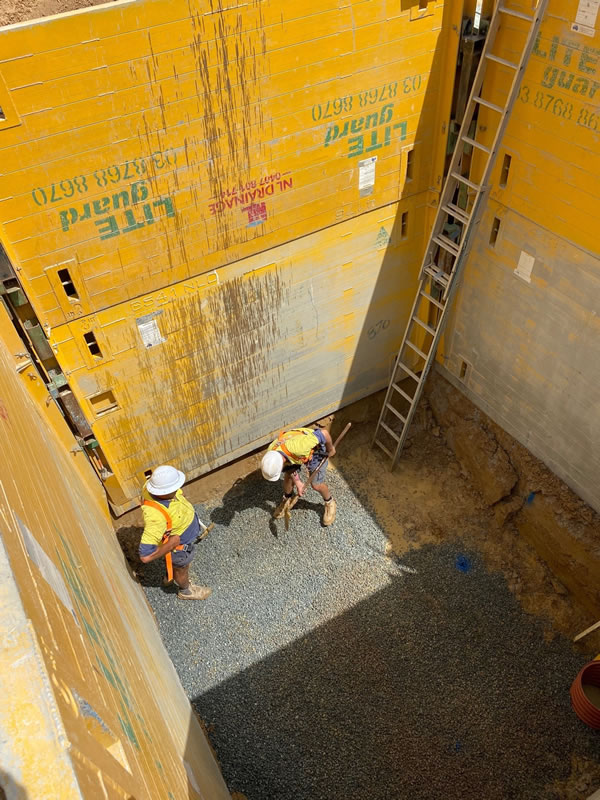

LITE Guard's Super Size Trench Shields are aluminium trench shields suitable for use with larger machines with a lifting capability of 12 tonne and upwards.
The largest of these trench shields weighs in at just on 2200kgs, giving a great strength to weight ratio and is unique to the LITE guard range.

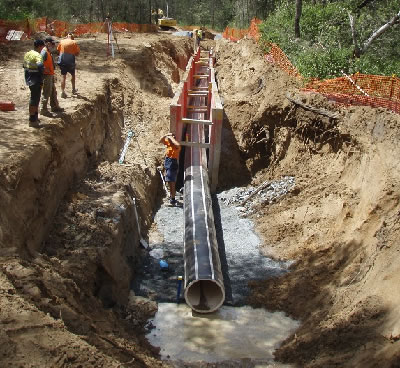

Double skin. Great contractors shield. Good for all long length pipes, bore pits, and excavation work. Fantastic working load for this size of trench shield.
3000mm long gives a massive 150kPa working load.
We can manufacture panel sizes to suit your individual requirements.
Main Features
Double skin
High Working loads (150mm panel thickness)
High clearance rise bars available on request
Option of fixed or telescoping spreader bars (telescoping on request)
| Panel Sizes | Weights | kPa Rating |
|---|---|---|
| 4000mm x 2400mm x 150mm | 590kg | 70kPa |
| 5000mm x 2400mm x 150mm | 710kg | 55kPa |
| 6000mm x 2400mm x 150mm | 830kg | 45kPa |
High Clear Rise Bar
1950mm under strut height (Standard)
Max. 2300mm under strut height (upon special request)
Fixed Struts
1000mm to 4000mm (internal)
1000mm to 3700mm (internal)
Fixed Spreader Bars / Struts
100 x 100 x 9 Steel – 600mm to 3000mm
150 x 100 x 9 Steel – 3500 to 5000mm
| Panel Type | Panel Length mm | Panel Height mm | Safe Working Load (kPa) | Panel Thickness mm | Under Strut Clearance | Internal Clearance Strut to Strut mm | Unit weight Incl. 1000mm Struts |
|---|---|---|---|---|---|---|---|
| Lower | 4000 | 2400 | 70 | 150 | 1350 | 3700 | 1293kgs |
| Upper | 4000 | 1950 | 70 | 150 | 550 | 3700 | 1188kgs |
| Lower | 5000 | 2400 | 55 | 150 | 1350 | 4700 | 1628kgs |
| Lower | 6000 | 2400 | 45 | 150 | 1350 | 5700 | 1776kgs |
| Upper | 6000 | 2400 | 45 | 150 | 1350 | 5700 | 1907kgs |
LITE guard Super Size Trench Shields Meet Global Standards
AS 4744.1-200, BS. EN 13331.1 & 13331.2. (British & European standard), OSHA Sub Part P
